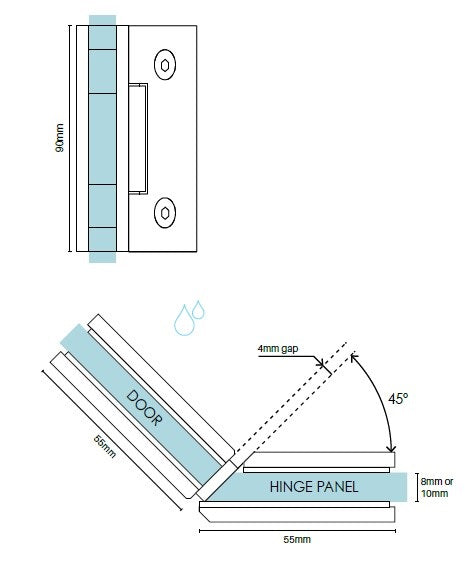

Chrome 135 Degrees glass to glass hinge Frameless shower screen hinge

• Square finish edges

• Suitable for 8mm and 10mm glass

• "D" style glass cutouts

• Self-closing from approximately 25 Degrees

• Dual-action - opens inwards and outwards

• Brass center block with solid precision
clamping plates

• Special tempered SS304 square spring coil.
Provides consistent long-lasting opening
and closing function

• Modular mitre cut glass available for hinge
and return panels (see page 69)

• Specially designed strong clamping
plate with pre-glued EPDM gasket

Max door weight: 35kg per pair
Max door width:
800mm
