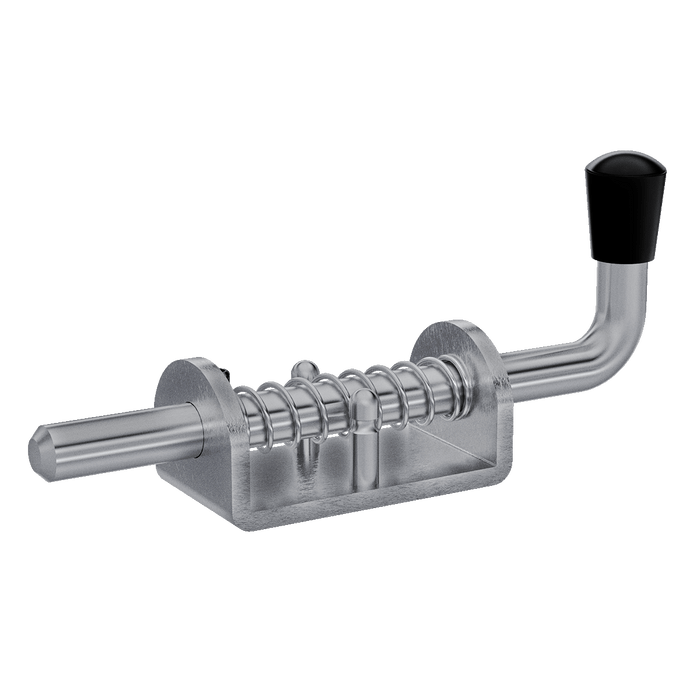

• Aluminum base Spring Bolt with a stainless steel rod. Shown in right perspective with rod in closed position.

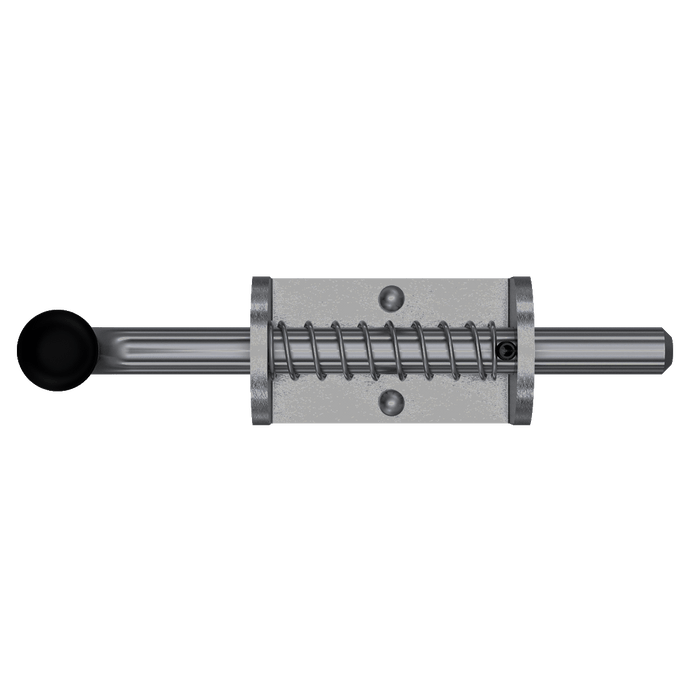

  • Aluminum base Spring Bolt with a stainless steel rod. Shown from top perspective with rod in closed position.

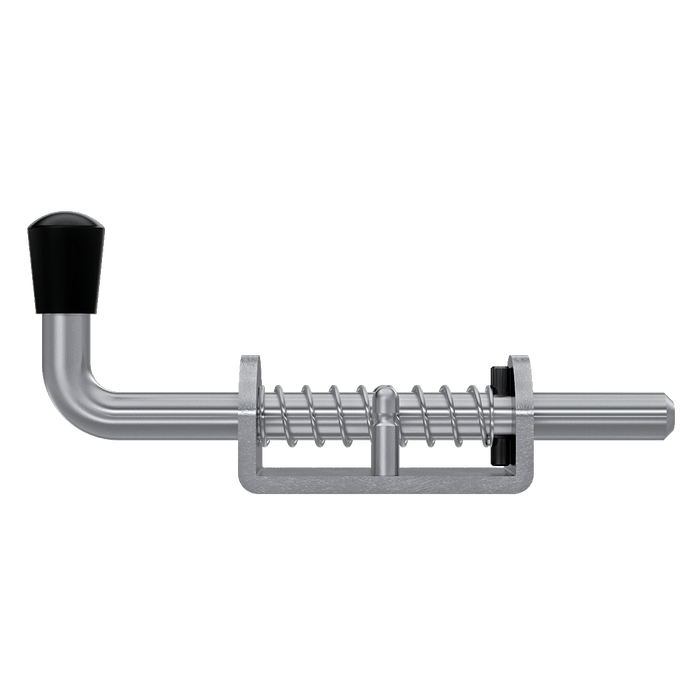

  • Aluminum base Spring Bolt with stainless steel rod. Shown in front perspective with rod in closed position.

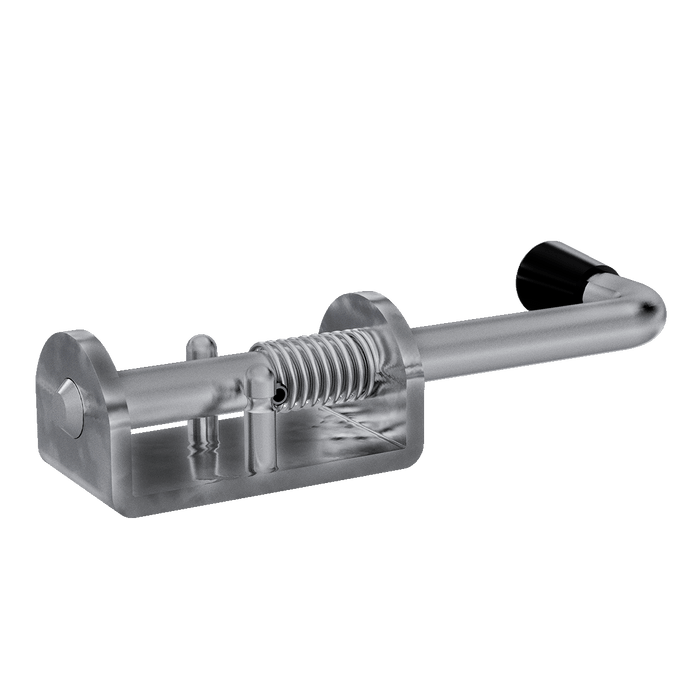

  • Aluminum base Spring Bolt with stainless steel rod. Shown in right perspective with rod in open position.

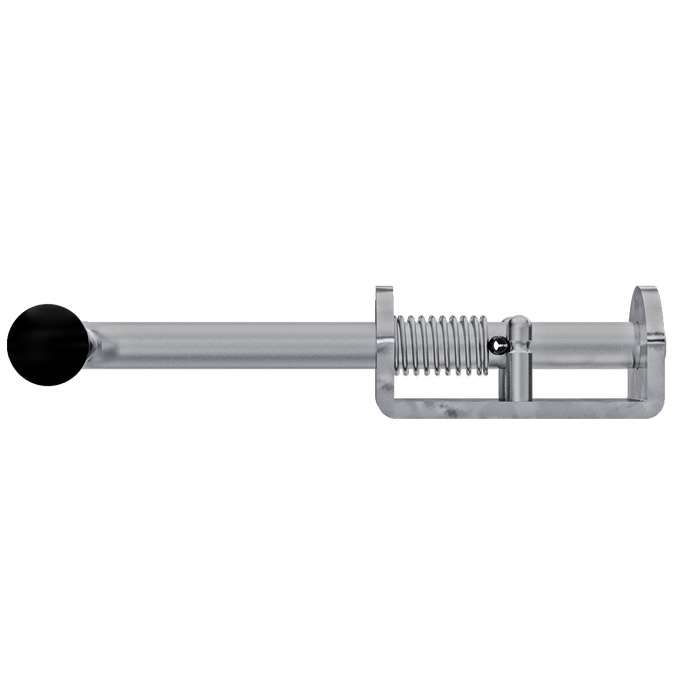

  • Aluminum base Spring Bolt with stainless steel rod. Shown in front perspective with rod in open position.
1 5

TCH

6.5-inch Spring Bolt with Aluminum Mounting Plate

6.5-inch Spring Bolt with Aluminum Mounting Plate

$9.34 USD
$15.57 USD $9.34 USD
Sale Sold out
Shipping calculated at checkout.
Size
  • Spring-loaded bolt secures doors, gates, and access panels, rotate handle to extend or retract the bolt and hold position for quick latch and release.
  • Mounts to flat surfaces on enclosures, cases, and light-duty gates, use as a hold-closed latch where simple mechanical security and repeatable alignment are needed. Intended for welding applications.
  • Rotates 180 degrees and locks in the open position, helps prevent accidental re-engagement during loading, cleaning, or service tasks.
  • Aluminum mounting plate with stainless steel bolt and hardware, plain finish with black handle grip, built for corrosion resistance in general industrial environments.
  • Medium size, overall length 6-1/2-inch [165.1mm], height 2-7/8-inch [72.6mm], depth 1-9/16-inch [40.1mm], includes 1 piece packaged in a bag.
  • MFG Item No: 556-65150806
  • Material: Aluminum / Stainless Steel
  • Color/Finish: Plain / Black
  • Size: Medium
  • Width: 6.50in [165.1mm]
  • Height: 2.86in [72.6mm]
  • Depth: 1.58in [40.1mm]
  • Weight: 1.00lb [0.5 kg]
  • Country of Origin: China
  • Package Quantity: 1
  • Package Type: Bag
